Option 2: Site Elevation Plan

Scanning Your Site

LiDAR: Easy to Use

To use LIDAR on a phone or tablet, you typically access the feature through compatible apps or settings on your device. Once activated, the LIDAR sensor emits laser pulses, capturing precise distance measurements and creating detailed 3D maps of your surroundings. LIDAR technology is predominantly featured in certain high-end smartphones and tablets. Devices like the iPhone 12 Pro, iPhone 13 series, and iPad Pro models are equipped with LIDAR sensors. On the Android side, some flagship devices from manufacturers like Samsung and Google, such as the Samsung Galaxy Note 20 Ultra and the Google Pixel 4 series, also incorporate LIDAR technology. Always check the specifications of your device to confirm whether it includes LIDAR technology.

LiDAR: The Basics

LIDAR, short for Light Detection and Ranging, is a technology that uses laser beams to measure distances. It works by sending out laser pulses and measuring the time it takes for them to bounce back, creating detailed 3D maps of the surrounding environment. LIDAR allows designers to take 3D scans of clay models and construction spaces quickly and precisely.

LiDAR: Multiple Applications

Whether you are using LIDAR to scan your clay model or scan a construction space, the creative and practical uses are extraordinary. At Pikus, we use the technology to communicate with clients, ensuring that the 3D model is accurate to the space for the installation as well as the artist’s intentions. If you have any further questions or concerns about the use of LIDAR for creating precise rockwork chip & tab panels, please contact us and our knowledgeable team members will be happy to answer all your questions.

The Modeling Process

LIDAR of Site

If we receive a LIDAR scan of your installation site, we will model the prints directly to the space. This includes the angles of any pre-installed hardware or connection points. A LIDAR scan is the most accurate way to get a model for your rockwork without 3D assets.

Elevation Plan

If a scan of your site is not achievable, Pikus can create 3D assets based on your site elevation plans. This method may result in less accurate models, and can only reflect the site plans, which may differ from the actual installation hardware.

3D Modeling

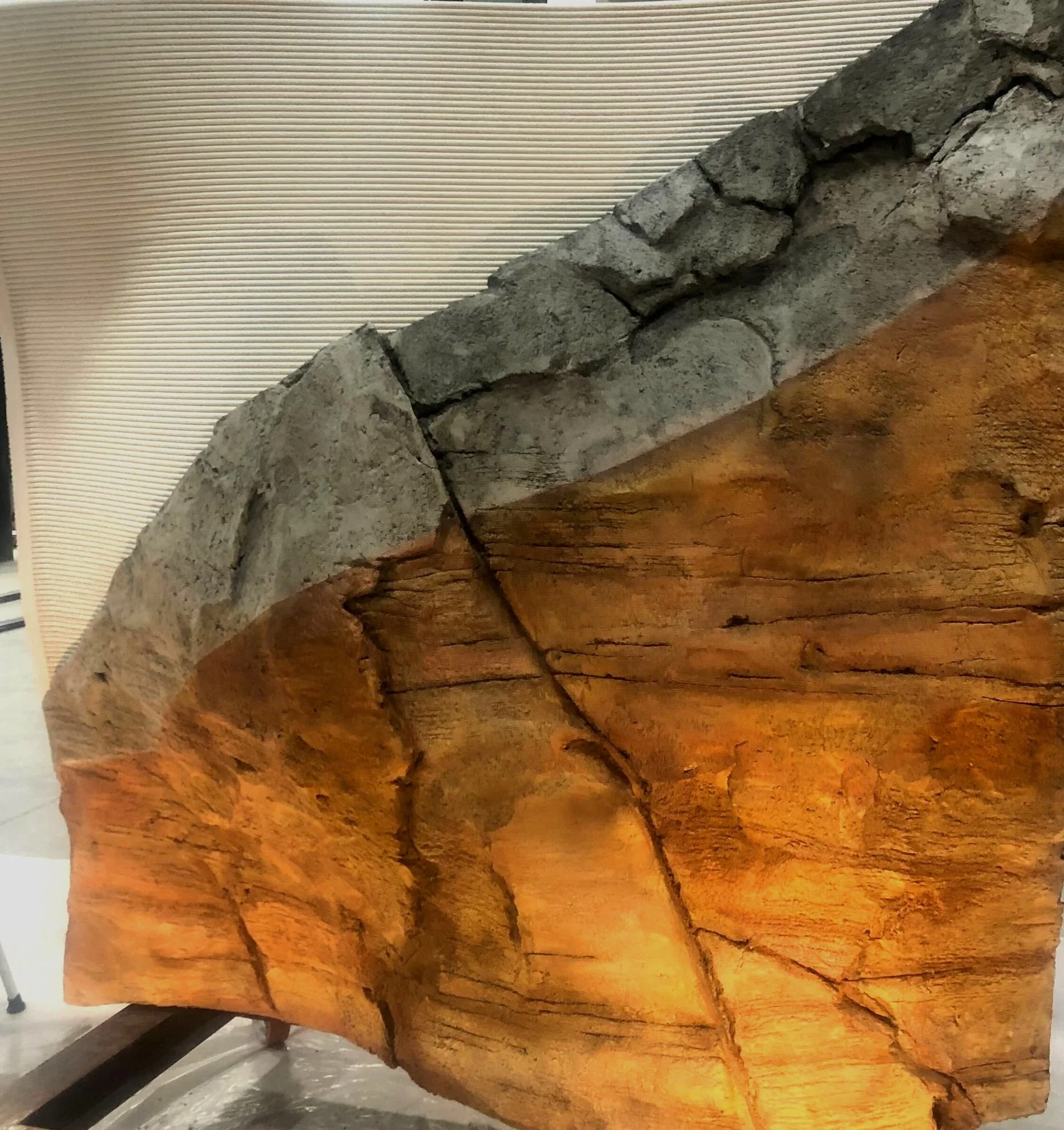

3D models will be created by Pikus to reflect only the chip & tab portion of your rockwork. Detailed renderings of your final rockwork panels can be requested from your rockwork designer. Please reach out to us with any questions at create@pikus3d.com.

Artists Approval

The Bridge Between Design and Print

  • The following items will be sent to artists for final approval:


    - Chip & Tab models

    - Rockwork final Models

    - Engineering Modeling

    - Color Samples (digital or physical)

    - Attachments

  • All digital assets will be evaluated by both Pikus and the designer to ensure printability, structural stability, and engineering quality. If required, the design will be further evaluated by an engineer.

View the 3D model
